Cut - off Speed 2000-2500 r / min Cigarette Making Machines, cigarette maker,standard

Cut - off Speed 2000-2500 r / min Cigarette Making Machines, cigarette maker,standard
Cut - off Speed 2000-2500 r / min Cigarette Making Machines, cigarette maker,standard Cut - off Speed 2000-2500 r / min Cigarette Making Machines, cigarette maker,standard Cut - off Speed 2000-2500 r / min Cigarette Making Machines, cigarette maker,standard Cut - off Speed 2000-2500 r / min Cigarette Making Machines, cigarette maker,standard

Large Image :  Cut - off Speed 2000-2500 r / min Cigarette Making Machines, cigarette maker,standard

Product Details:

Place of Origin: China
Brand Name: UPPER BOND
Model Number: MK8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: WOODEN CASES
Delivery Time: 30Works Dates
Payment Terms: T/T
Supply Ability: 100 SETS/YEAR
Detailed Product Description
Output:: 2000cig/min Rod Speed: 140-175m/min
Cut-off Speed: 2000-2500r/min
High Light:

cigarette making machine

,

cigarette packing line

,

2000cig/min mk8 cigarette making machine

Cut - off Speed 2000-2500 r / min Cigarette Making Machines

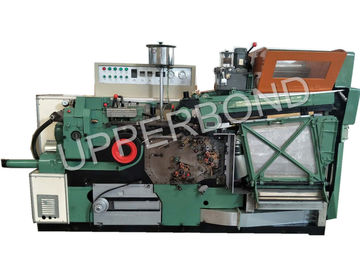

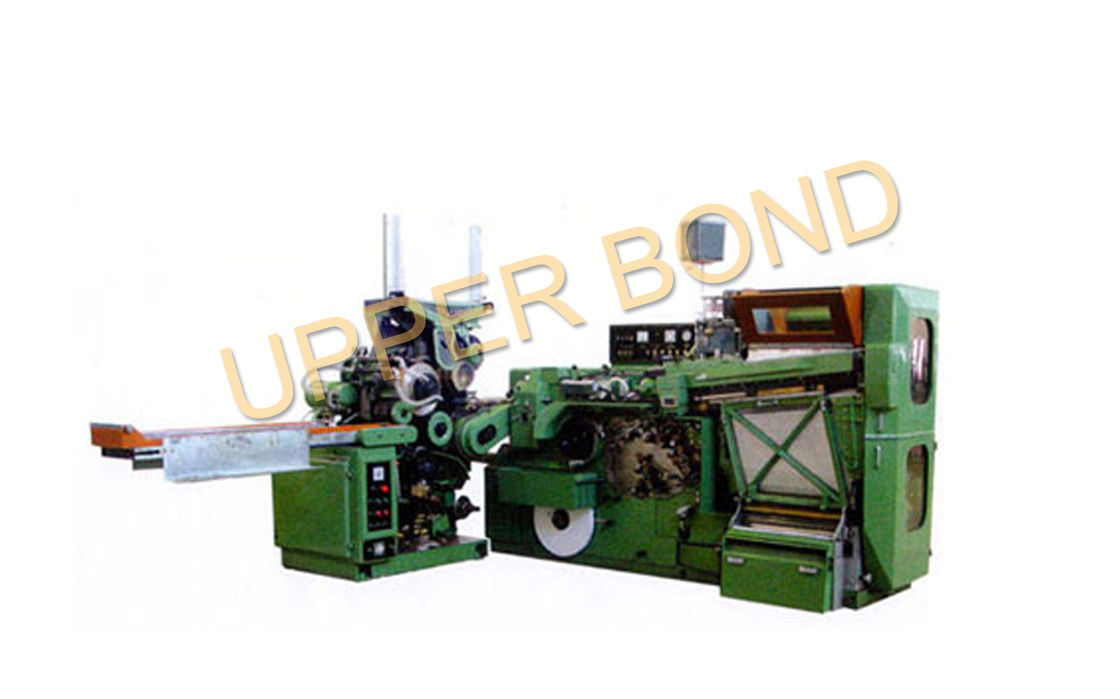

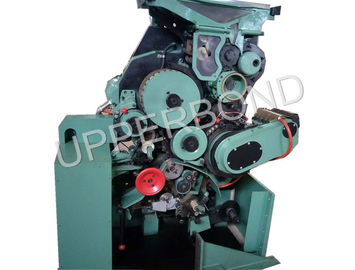

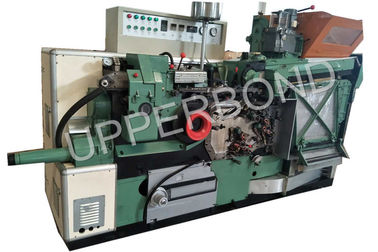

MK8 Cigarette Making Machine adopts the principles of tobacco formation sucked by vacuum and the mean weight control, and becomes a filter-tipped cigarette making machine in a higher medium speed after successful modification and perfection with stable performance, high working efficiency. This combination has been improved partly to meet different requirements of changing cigarette specifications.

MK8 cigarette making machine is  the standard machine, with proven technique , and can make the various cigarettes according to the customers' requirements. For example 5.5mm, 7.0mm, 8.0mm etc.



MAIN PARAMETERS:

Output:

2000cig/min

Rod Speed

140-175m/min

Cut-off Speed

2000-2500r/min

PRODUCT  DIMENSION



Filter Cigarette Length

65- 120mm

Rod Cigarette Length

45-90mm

Rod Cigarette Diameter

6.3-9.0 mm

Filter Plug Length

60-159 mm

Filter Tip Length

15-30mm

Filter Tip Diameter

6.3-9.0mm

CorkPaper Length

13-45mm

Ambient Conditions

6×105pa

Air Pressure

4×105pa

Working Pressure

380±38 V(3 phases)

Supply Voltage

220±22V

Lighting Voltage

50HZ±1HZ

Frequency



MACHINE WEIGHT



Maker

3050KG

Plug Assembler

1800KG

Total power

17 kw































Cut - off Speed 2000-2500 r / min Cigarette Making Machines, cigarette maker,standard 0
