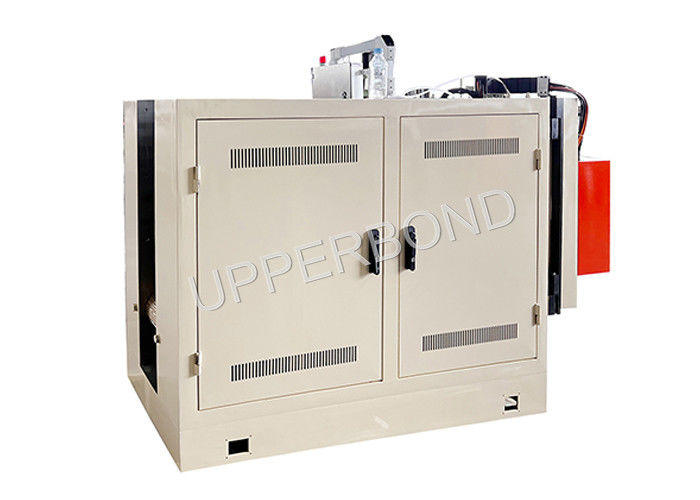

MC84R Rotary 9.15KW Power Tobacco Cutter

Large Image : MC84R Rotary 9.15KW Power Tobacco Cutter

Product Details:

Place of Origin:	China
Brand Name:	UPPER BOND
Model Number:	MC84R

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	WOODEN CASES
Delivery Time:	45 Works Dates
Payment Terms:	T/T

Contact Now

Detailed Product Description

Name:	Tobacco Cutting Machine	Leadtime:	One Month
Brand:	Upperbond	Cutting Width:	0.15-1.5mm
Storage Capacity:	120 Kg/m³	Power:	9.15kw
Usage:	Tobacco/chinese Medicine Cutting	Original:	China
Payment:	TT,Wester Union	Rated Capacity:	3000KG
Control System:	Servo Drive +PLC+ Touch Screen	Dimension:	188111162160MM
Highlight:	9.15KW Tobacco Cutter , MC84R Tobacco Cutter , Rotary Tobacco Cutter

Product description

MC84R rotary cutting machine is a special machine for cutting vegetables, tea, Chinese medicine or similar materials independently developed by our company. MC84R rotary cutting machine is composed of fuselage, feed belt, compaction belt, cutter head, automatic sharpening device, automatic feed device and control system. This machine adopts our company's innovative proprietary technology and automatic control system such as servo drive, PLC and touch screen, which can set and run multiple parameters to meet different production needs.

Specification:

Item	Unit	Parameter	Remarks
Cutting width	mm	0.15-1.5	adjustable
Rated capacity	kg/h	3000	It is related to material characteristics and cutting width
Storage capacity	Kg/m³	120	12% moisture
Knife door high	mm	75	Max 80mm
Knife door width	mm	400
Blade quantity	pcs	8
Knife roll rate	rpm	50-300
Air supply pressure	mpa	0.6
Blade life span	Hr	98
Grinding wheel life span	Hr	50
Total power	Kw	9.15
Control mode	Servo drive +PLC+ touch screen
Quality	Kg	4000
Overall dimension	mm	188111162160

Main technical parameters:

Working conditions

a) Ambient temperature :10～40℃

b) Relative humidity:≦80%

c) Above sea level:≦2000m

d) Power supply:3n～50hz,380v±38v；50hz±1hz

e) Compressed air:≧0.6mpa,0.4m3/min,should be dried and filtered.

f) Incoming material:Tea / vegetables / herbs:Moisture content: Between 18% to 28%,no

caking, no metals and other hard impurities.

g) Operators should be trained, and in strict accordance with the instructions manual.

Terms and Conditions

1.Trade Term: FOB

2. Delivery: 1-2 MONTHS

3.Payment: 50% DEPOSIT BY T/T IN ADVANCE, 50% BALANCE BEFORE SHIPMENT.

4.Shipment: BY SEA

5.Warranty: ONE YEAR

Remarks:

ALL SELLER’S ENGINEERS AND INTERPRETER’S EXPENSES INCLUDING BOTHWAY AIR TRAVEL, BOARD AND LODGING, LOCAL TRANSPORTATION SHALL BE BORNE BY BUYER.

ONCE THE CONTRACT IS CONFIRMED AND THE SELLER HAS RECEIVED THE ADVANCE PAYMENT, THE CONTRACT SHALL BE IRREVOCABLE AND THE SELLER HAS THE RIGHT NOT TO REFUND THE ADVANCE PAYMENT.
